Description

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions

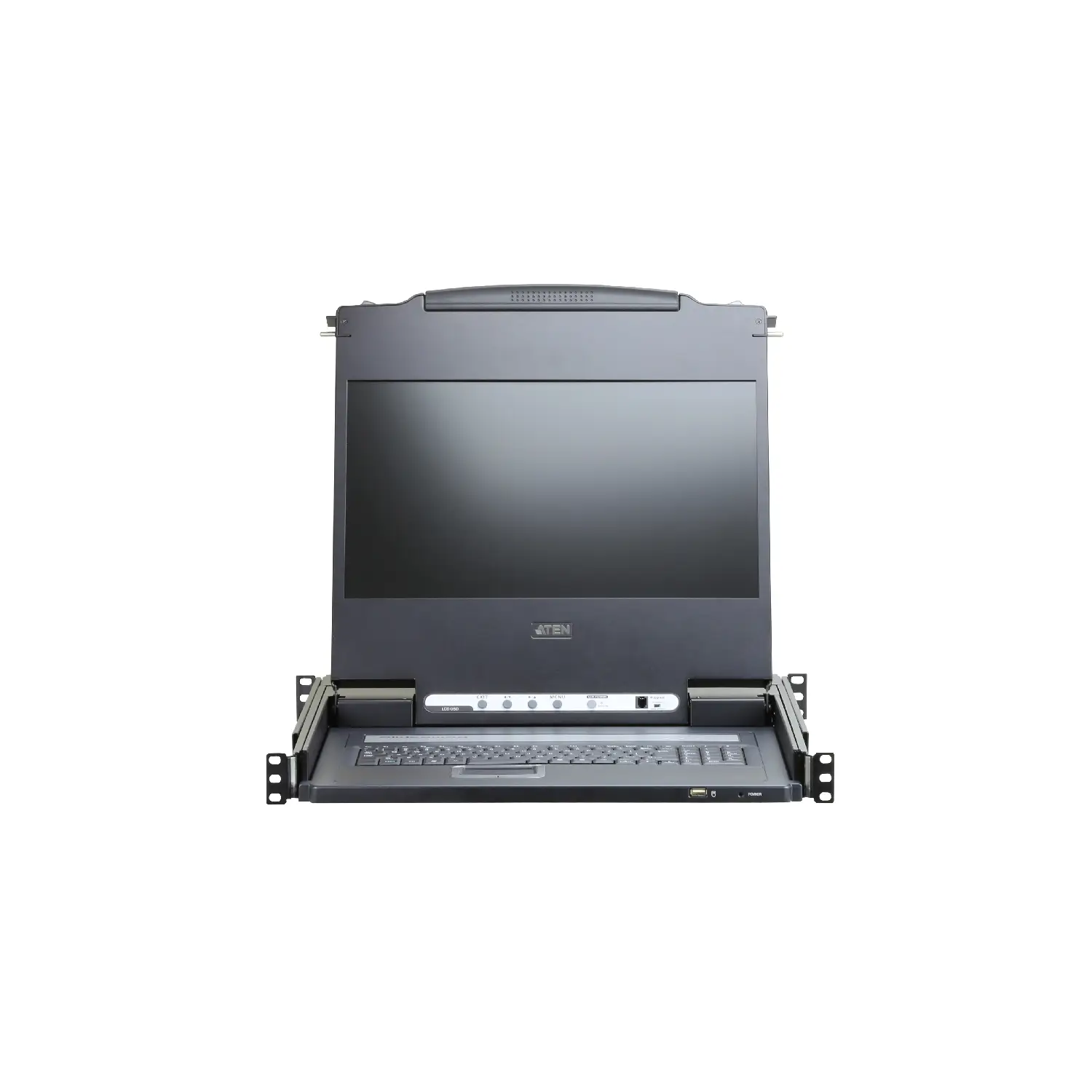

• Integrated KVM console with a 17.3” LED-backlit widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation with a 1U high system rack (CL6700MW)
• Integrated KVM console with a 19″ DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
• Superior video quality – up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
• Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
• Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
• Audio support (speakers)
• Standard rack mount kit included
• Optional rack mount kits available including easy installation options
• Standard 105-key keyboard; Sun keyboard emulation
• Multiplatform support – Windows, Linux, Mac, and Sun
• Firmware upgradeable
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• DDC emulation – video settings of each computer are automatically adjusted for optimal output to the monitor
